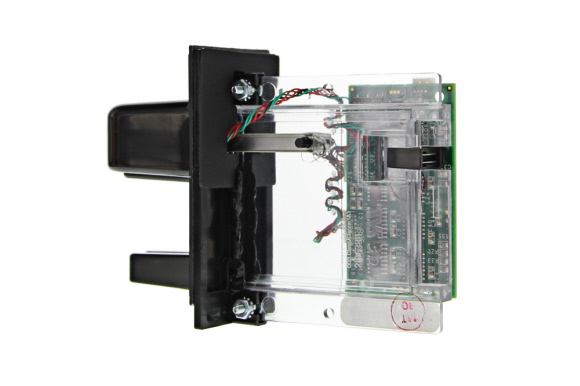

P-Series

OEM Insertion Reader

Magnetic Stripe Reader

Compact and robust for unattended outdoor payments, the P-Series conforms to ISO standards. The P-series is compliant while performing transactions in various outdoor applications including, self service kiosks, vending machines, petrol dispensing pumps and POS applications.

P-Series Versions

USB Configuration				P/N
PermaSeal Insert Tracks 1, 2	Dual head	Extended bezel	Stripe up or down Bezel, Head Right	21024851NZ

Sealed bezel and chassis

The water-tight design of the bezel and reader body meet UL50 requirements.

Robust Design

Ideal for gas pumps and outdoor kiosk applications. Electronics are protected from harmful contamination and unit is sealed from vapors and liquids. Available with mounting brackets that tilt the reader, draining away fluid.

Conforms to ISO standards

ISO Compliant card reader with dual head configurations supporting 2 or 3 tracks of information.

Multiple Interface Options

Available with USB, RS232 or TTL interface.

Features

Sealed bezel and chassis
Ideal for gas pumps and outdoor kiosk applications
Multiple interfaces available
Mounting brackets optional
Dual head / Double-sided option

Show Specifications

P-Series - Specifications

+ USB Configuration

General

Interface	USB, RS232, TTL, Shift-Out
Cable	Optional 6 ft. (white or black) – only with the USB and RS232 interfaces
Reference Standards	ISO 7810 & 7811, AAMVA
Card Speed	3 to 50 ips (7,6 to 127 cm) per second

Electrical

Power Input	5V from USB port
Current	Normal mode: 30 mA Suspend mode: 300 μA

Mechanical

Weight	3.74 oz. (106.03 g)
Dimensions	See Appendix A in Technical Manual
Cable length	Optional

Environmental

Temperature	Operating: -40°F - 185°F (-40°C - 85°C) Storage: -40°F - 185°F (-40°C - 85°C)
Humidity	Operating: 10% - 90% non-condensing Storage: 10% - 90% non-condensing
Altitude	Operating: 0 - 10,000 ft (0 - 3,048 m) Storage: 0 - 50,000 ft (0 - 15,240 m)

+ RS232 Configuration

General

Power Input	From RS-232 interface
Card Speed	3 - 50 (7,62 - 127 cm) per second

Electrical

DTR Voltage (Input)	+5 to +15 VDC
Transmit Data (TXD)	+5 to -5 VDC
Receive Data (RXD)	+15 to -15 VDC
Communication	Transfer Rate: 9600 bps, 8 data bits, no parity, 1 stop bit
Current
Power on Peak	10 to 12 mA
Transmitting	8 to 11 mA typical (5 ms duration)
Quiescent	4 to 6 mA typical (continuous)

Mechanical

Dimensions:	Without Bezel With Extended Arm Bezel
Length:	4.08" (103.6 mm) 4.82" (122.4 mm)
Width:	3.15" (80.0 mm) 3.54" (90.0 mm)
Height:	1.29" (32.8 mm) 1.81" (46.0 mm)

Environmental

Temperature Operating Storage	Units shipped prior to November 1, 2003: 32 oF to 131 oF (0 oC to 55 oC) Units shipped after November 1, 2003: -4 oF to 158 oF (-20 oC to 70 oC) -40 oF to 176 oF (-40 oC to 80 oC)
Humidity:	Operating 10% to 90% non-condensing Storage 10% to 90% non-condensing
Altitude	Operating 0-10,000 ft. (0-3048 m.) Storage 0-50,000 ft. (0-15240 m.)

+ TTL Configuration

General

Power Requirements	2 Track: +5 VDC ±10%, less than 12 mA
Speed Range/Second	3 - 50 (7,62 - 127 cm) per second

Electrical

Input Voltage	+5 VDC ±10%.
Current Draw:	Less than 12 mA
MTBF:	Electronics: 125,000 hours. Head: 1,000,000 passes (500,000 insert cycles) Output Signal Levels Vol = 0.4 V @ 2.0 mA Voh = Vcc – 0.5V @ 2.0 mA
Interface:	TTL level.
Dielectric Strength:	DC250 volts, 1 minute
Insulation Resistance:	Greater than 10 M ohms at DC 250V (Measured between PCB ground and frame).

Mechanical

Without Bezel With Extended Arm Bezel
Length:	4.08" (103.6 mm) 4.82" (122.4 mm)
Width:	3.15" (80.0 mm) 3.54" (90.0 mm)
Height:	1.29" (32.8 mm) 1.81" (46.0 mm)
Weight:	3.5 oz. (100 g ±20%)

Environmental

Temperature	Operating: -22 oF to 140 oF (-30 oC to 60 oC) Storage: -22 oF to 158 oF (-30 oC to 70 oC)
Humidity:	Operating: 10% to 90% non-condensing Storage: 10% to 90% non-condensing
Altitude	Operating: 0 - 10,000 ft. (3,048m) Storage: 0 - 50,000 ft. (15,240m)
